Disc / Flange Parts
Flanges, end caps, connecting discs, gaskets
- Material 20# steel, 45# steel, SS 304, SS 316L, Al 6061
- Process CNC turning, CNC milling, drilling, tapping
- Tolerance ±0.02mm
- Lead Time 10-20 days
Product Details
We specialize in multi-cavity hydraulic flanges, claw end caps, branded end caps, and tapped-boss connection flanges — turning, milling, drilling, tapping, laser engraving, and sealing-face lapping in one process. PCD ±0.05mm, flatness 0.05mm, runout 0.02mm.
Applications
- Pipe flange connectors
- Motor end caps
- Gearbox connecting plates
- Hydraulic system flanges
- Pump end covers
Typical Size Range
- Min
- Φ50mm
- Max
- Φ600mm
- Other
- Thickness ≤80mm
Common Materials
| Material Grade | International Standard | Typical Application |
|---|---|---|
| 20# Steel | AISI 1020 | Carbon steel flanges, low-pressure piping |
| 45# Steel | AISI 1045 | Medium-pressure flanges, structural discs |
| SS 316L | AISI 316L | Chemical, food-grade sealing |
| Aluminum 6061 | AA 6061 | Lightweight end caps |
Process Capabilities
- CNC turning (OD, ID, face in one setup)
- CNC milling (cavities, special holes, seal faces)
- Drilling and tapping (M6-M48, 6H)
- Counterbores / bosses (PCD ±0.05mm)
- Laser engraving (LOGO / serial number)
- Sealing-face lapping (RF, FM, TG, RJ)
Disc / Flange Parts Part Gallery

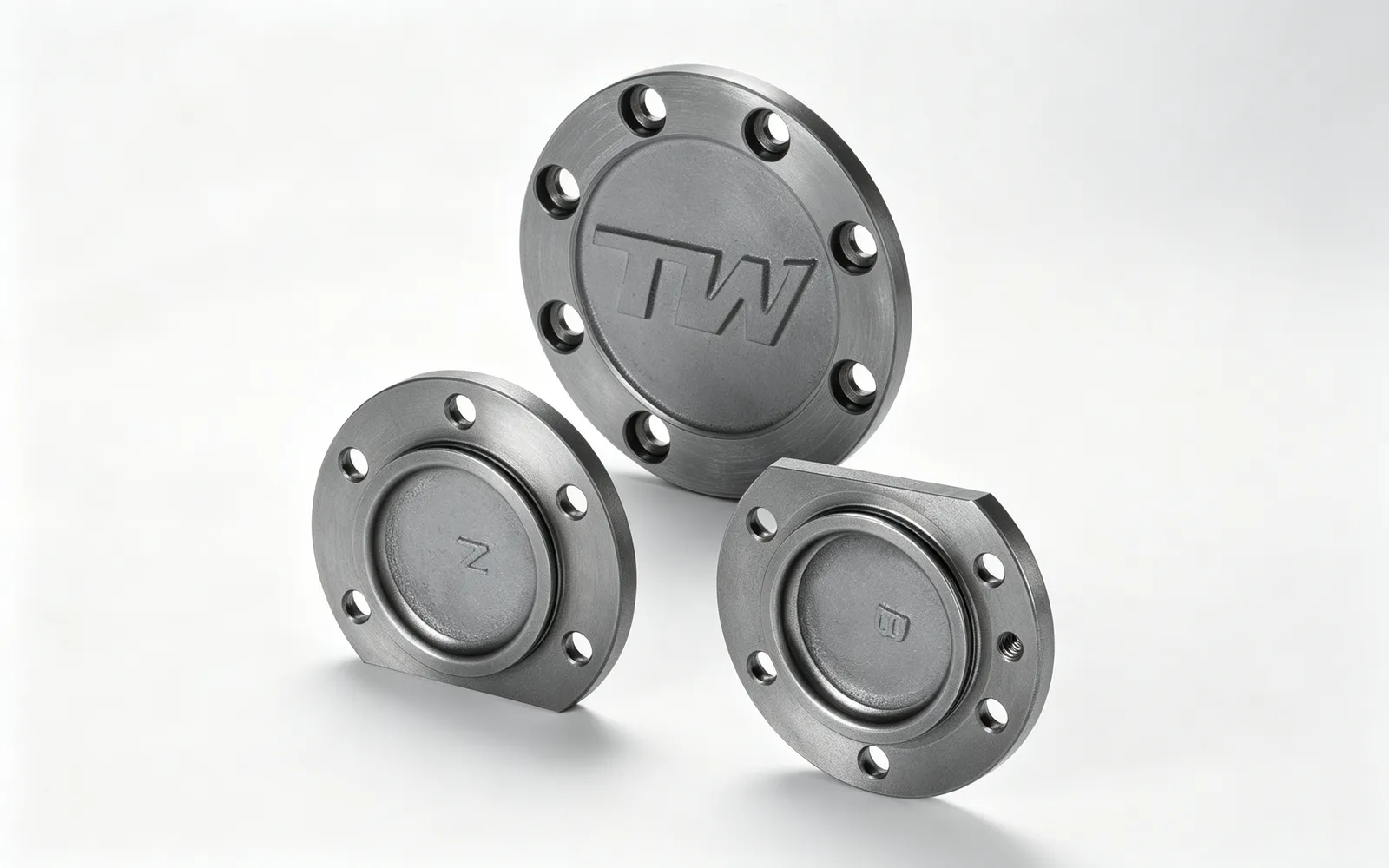

Finished parts and typical process features (4 photos)
01
02
03
04 Frequently Asked Questions
What flange sealing face types do you support?
We support RF (raised face), FM (male-female), TG (tongue-groove) and RJ (ring joint) — per ASME B16.5, EN 1092-1 and GB/T 17241.
Can bolt holes be machined to customer position?
Yes — any PCD, hole count and distribution; just provide the hole layout or a template.
What info is needed for a quote?
① OD, ID, thickness ② bolt count and PCD ③ seal face type ④ material ⑤ quantity. Drawings in PDF/STEP are best.
Detailed Content
Disc / Flange Parts
Disc and flange parts are core components in piping, transmission and connection systems for fluid transport, mechanical drive and structural joints.
Core Process Capabilities

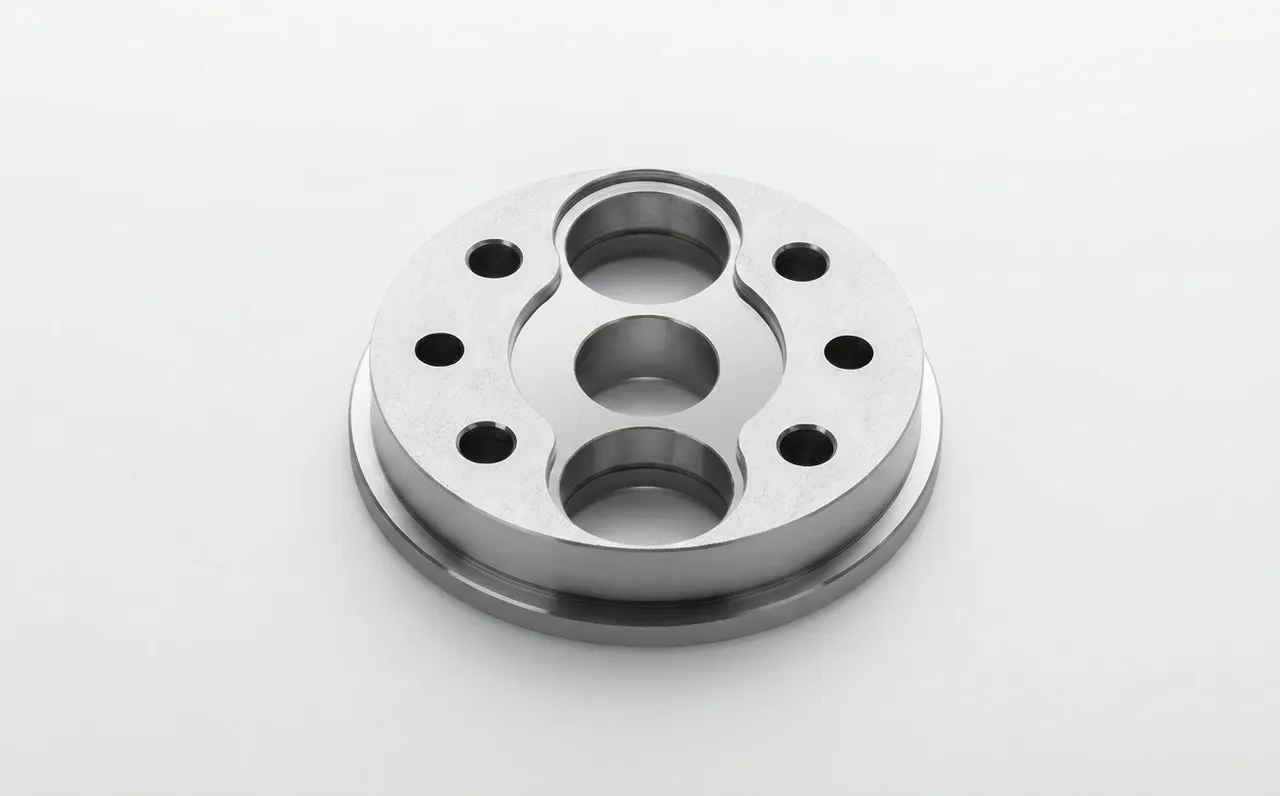

- Multi-cavity milling: 8 kidney cavities + 4 center bores machined in one pass with positional accuracy ±0.05mm — suitable for compact hydraulic valve blocks and multi-port flanges.

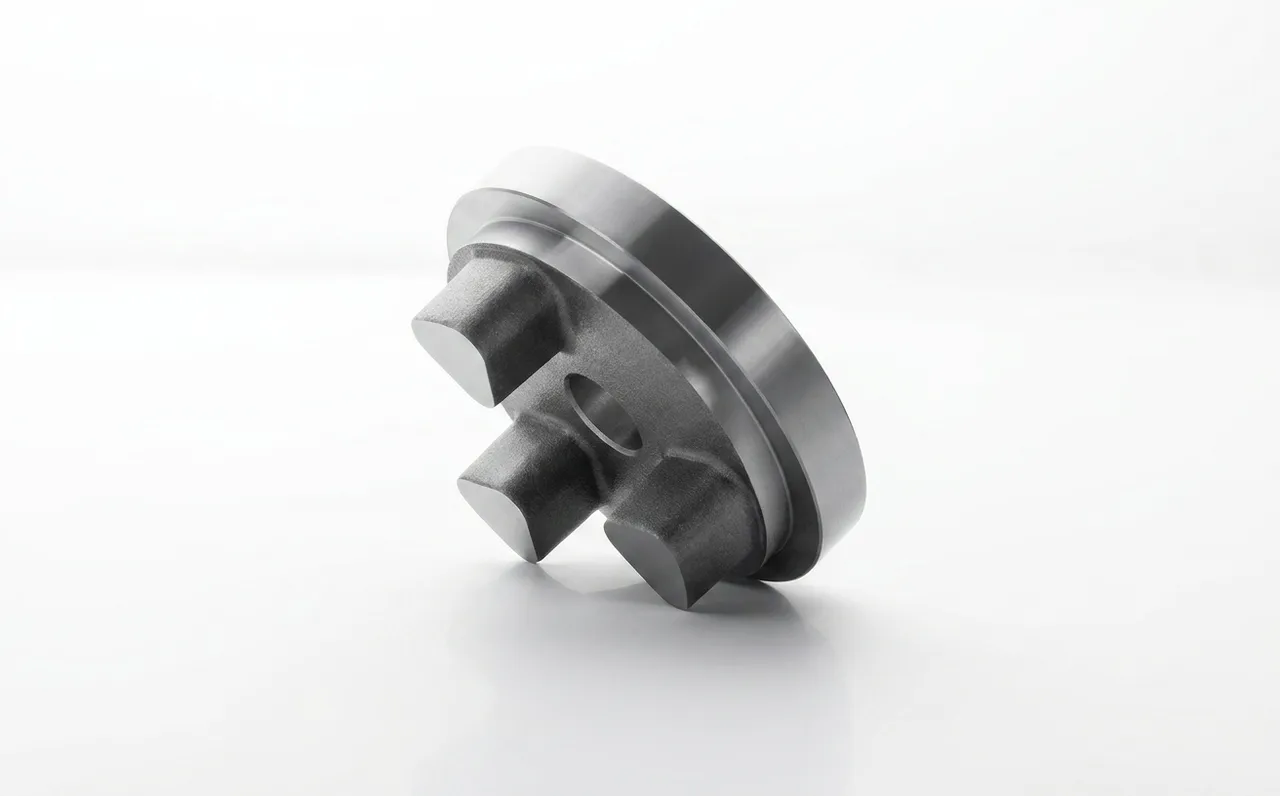

- Claw / ear forming: 4 ears formed in one setup, avoiding the secondary positioning errors of split machining — face turning Ra0.8, runout ≤0.02mm, ensuring true concentric assembly.

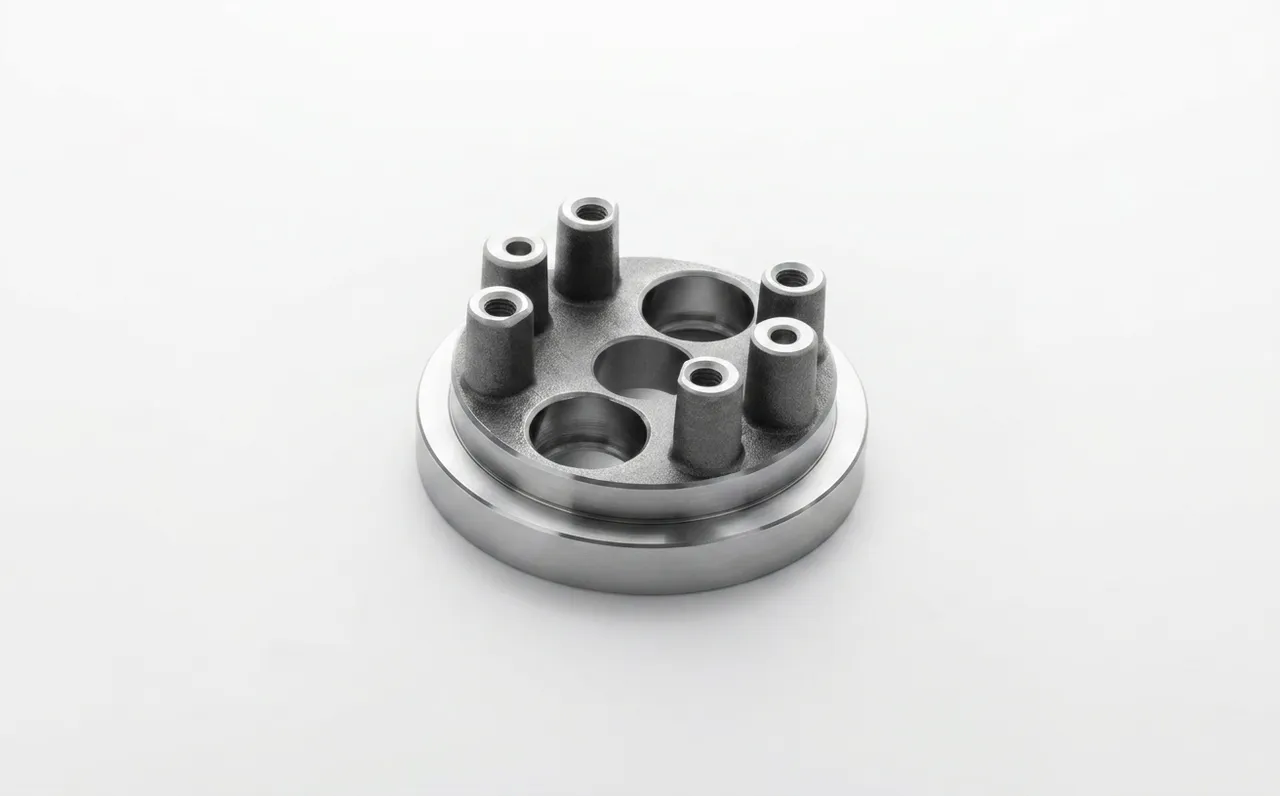

- Counterbores and tapped bosses: 8 evenly spaced counterbores for flush bolt mounting and 6 tapped bosses integrated with 4 thru holes; thread accuracy 6H for direct locking with mating screws.

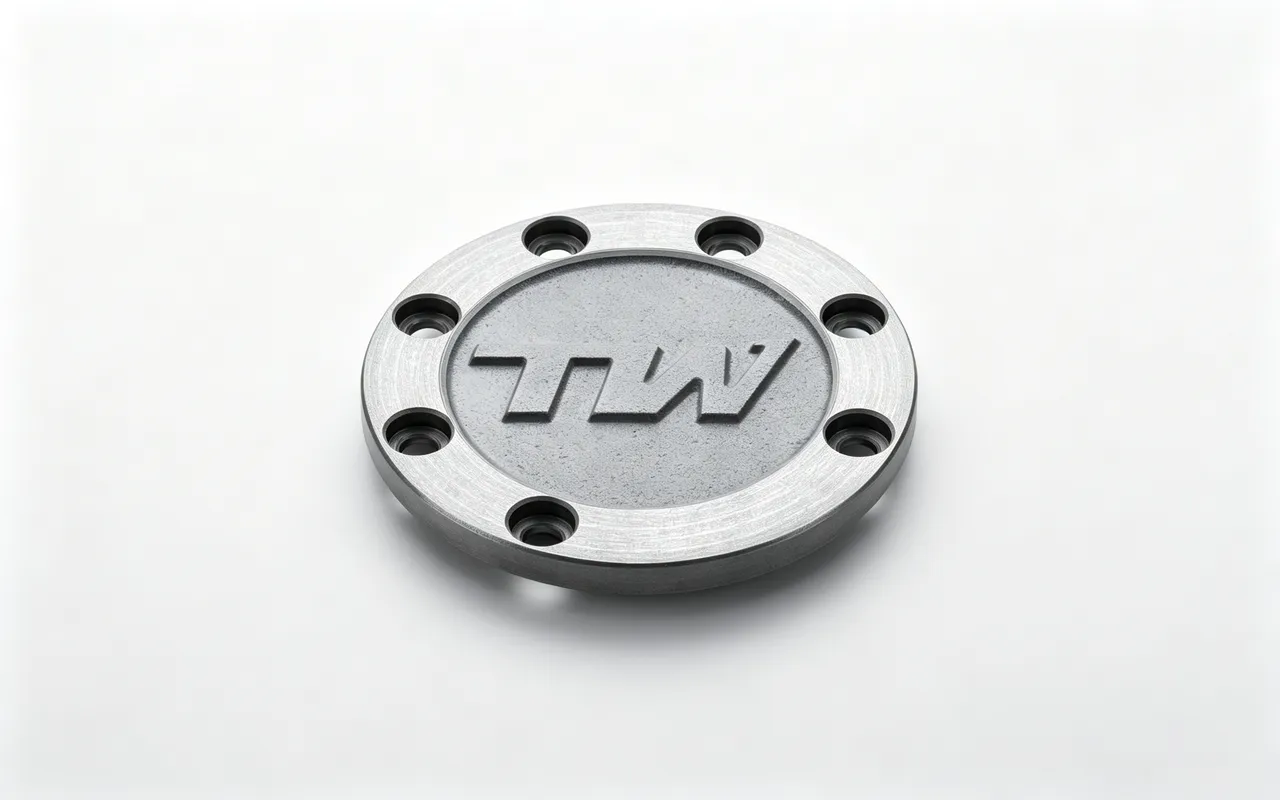

- Brand laser engraving: end-face LOGO / serial numbers laser-engraved to a controllable depth of 0.1-0.3mm with no wear over time — ideal for OEM branded end caps.
- Flatness / sealing-face lapping: sealing faces lapped to flatness ≤0.05mm, combined with RF / FM / TG / RJ standard face types to meet ASME B16.5 / EN 1092-1 sealing requirements.
