Structural / Bracket Parts
Mounting brackets, frames, bases, arms
- Material Q235, 45# steel, SS 304, Al 6061/6063, carbon steel
- Process CNC milling, turning, welding, cutting, surface treatment
- Tolerance ±0.05mm
- Lead Time 10-20 days
Product Details
We specialize in full-CNC-milled flush panels, decorative covers, and U-shape clamping brackets in aluminum, steel, and stainless. Chamfers, slots, and clamps in one setup, with optional anodizing (gold/black/natural), bead-blast, zinc, and powder coating.
Applications
- Equipment mounting bases
- Robotic arm brackets
- Robot frames
- Inspection equipment supports
- Automation line brackets
Typical Size Range
- Min
- 30×30×30mm
- Max
- 2000×1500×800mm
- Other
- Single-piece weight ≤500kg
Common Materials
| Material Grade | International Standard | Typical Application |
|---|---|---|
| Q235 | ASTM A36 | Steel structures, low-load brackets |
| 45# Steel | AISI 1045 | Medium-load brackets |
| SS 304 | AISI 304 | Food and medical brackets |
| Aluminum 6061-T6 | AA 6061-T6 | Lightweight robot structures |
Process Capabilities
- Full CNC milling (panels, covers in one setup)
- Turn-mill (U-brackets, sleeve-shaft integral)
- Welded structures (CO2 / TIG, large weldments)
- Laser cutting (sheet, complex contours)
- Surface treatment (anodizing, blasting, painting, zinc, nickel)
Structural / Bracket Parts Part Gallery
Finished parts and typical process features (3 photos)

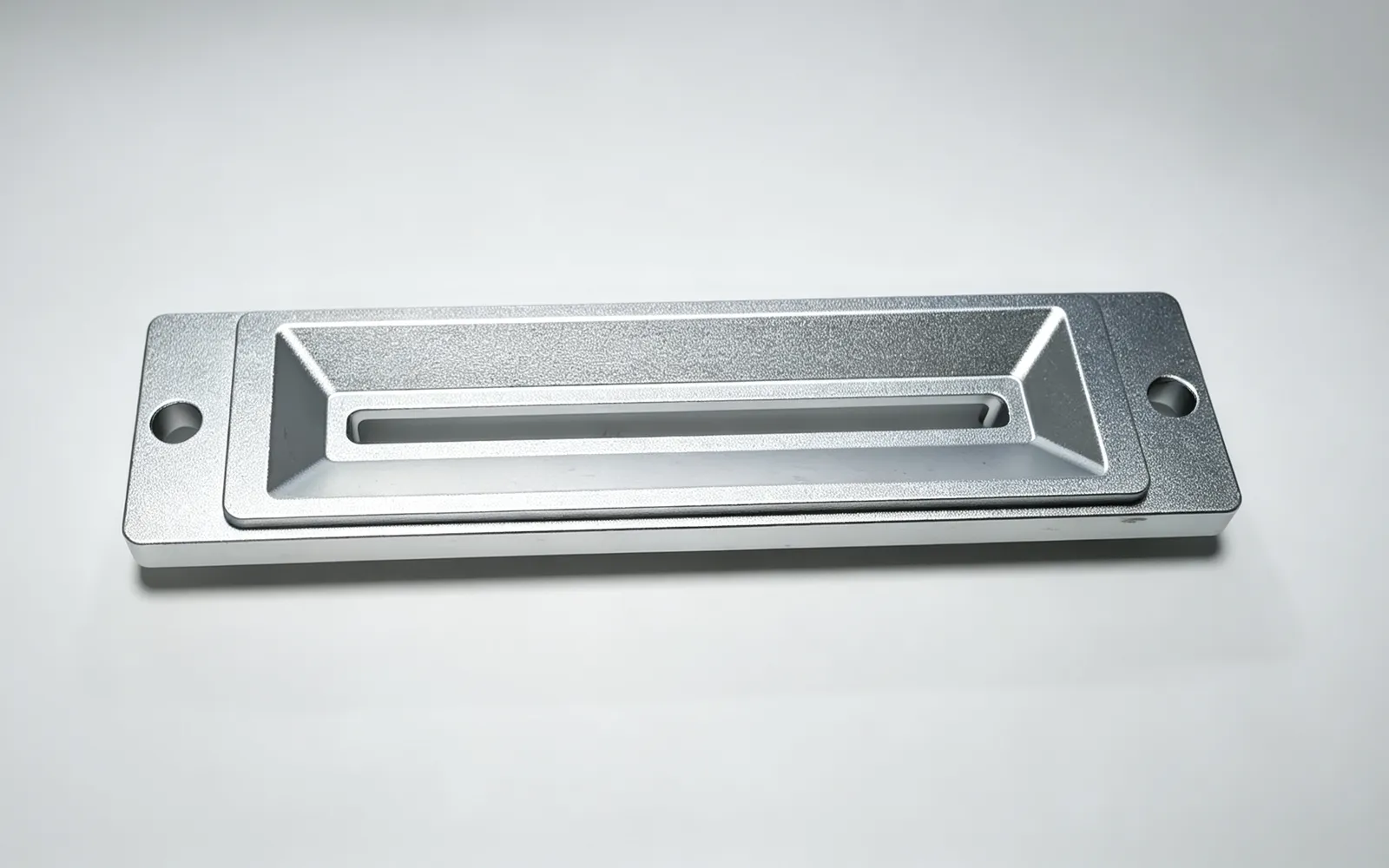

01

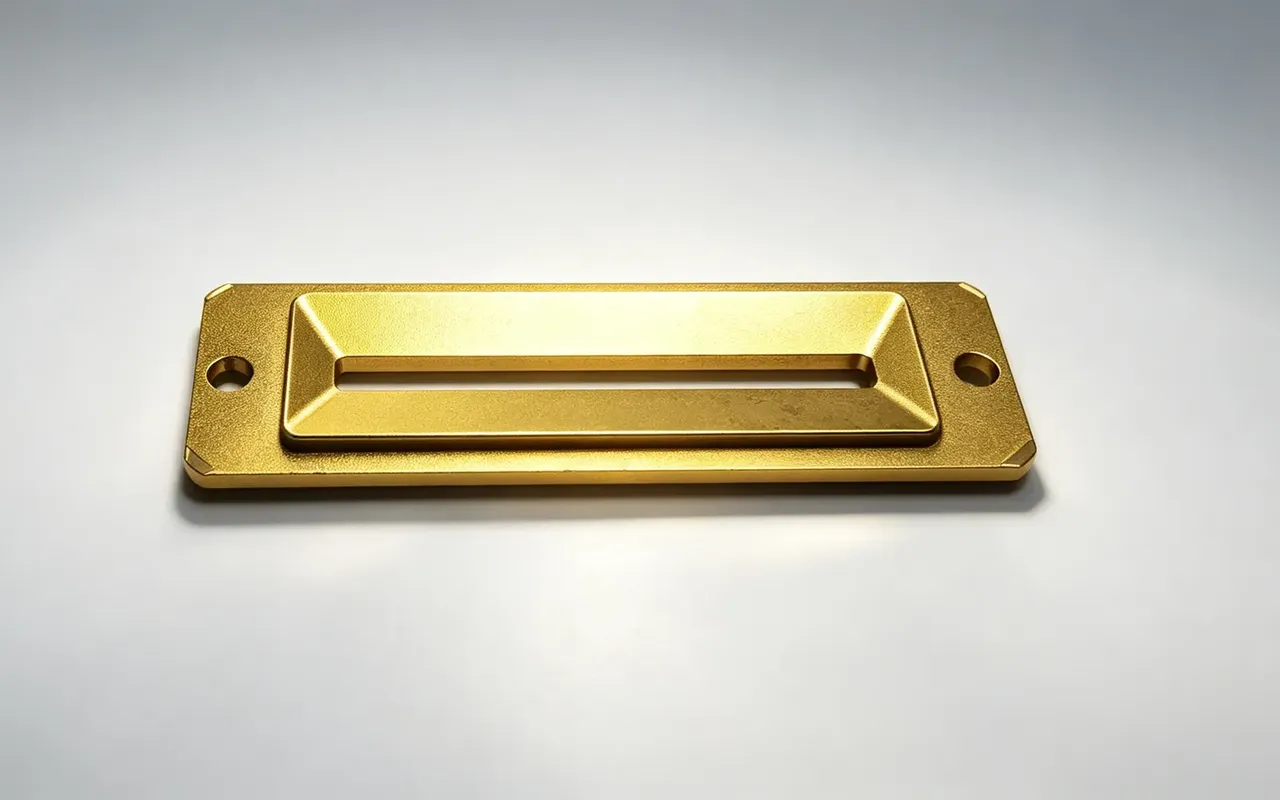

02

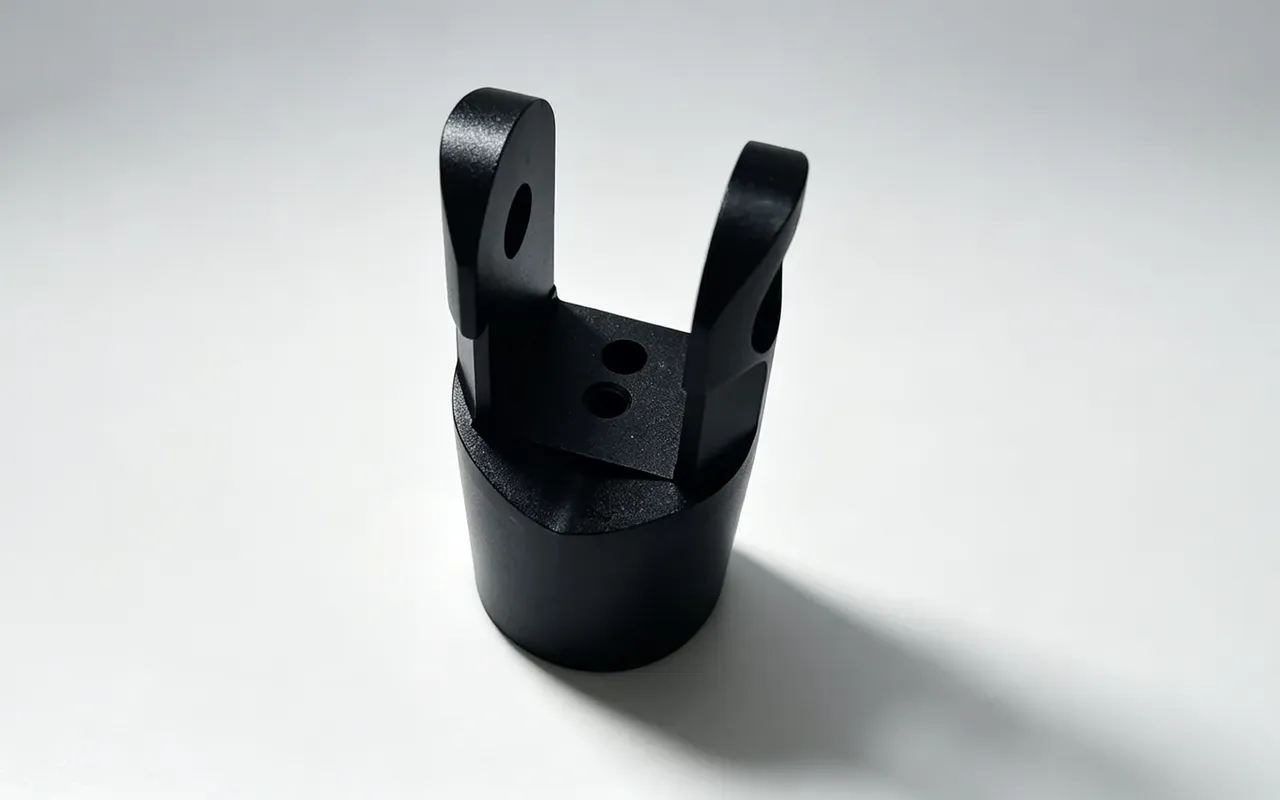

03 Frequently Asked Questions
Is it machined from solid or a welded structure?
Depends on complexity, size and cost. Welded structures recommended above 500×500mm; small parts typically machined from solid.
Will it warp after welding?
Symmetric weld sequence + vibration aging + finish compensation. Geometric tolerance to 0.1mm/m, with critical faces re-machined.
What surface treatments are available?
Common: paint, powder coat, anodize, zinc, nickel, Dacromet, blackening. Pantone color matching available.
Can you pre-assemble with bolt holes?
Yes — we pre-assemble with bolt spec (spring + flat washers) so parts are ready for use on site.
Detailed Content
Structural / Bracket Parts
Structural and bracket parts are the load-bearing basics of mechanical equipment, supporting installation, fixation and force transmission.
